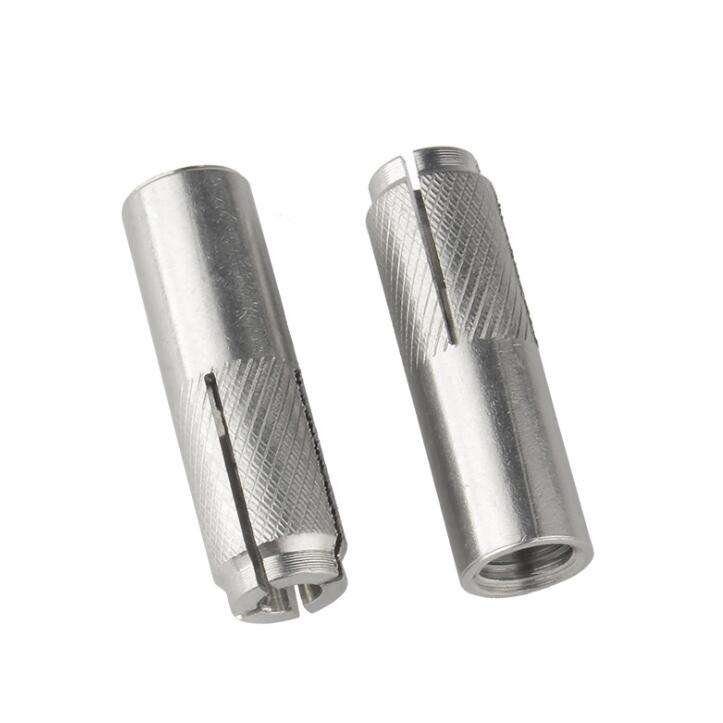

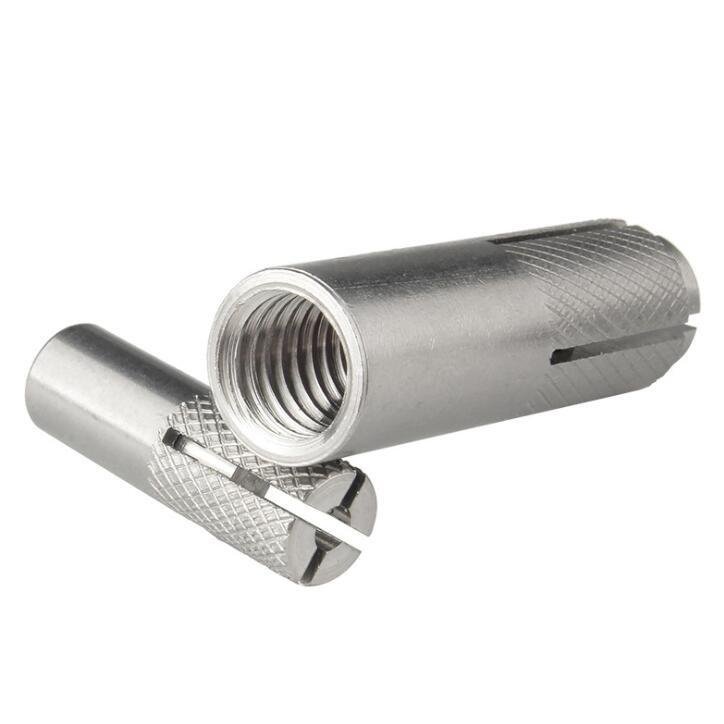

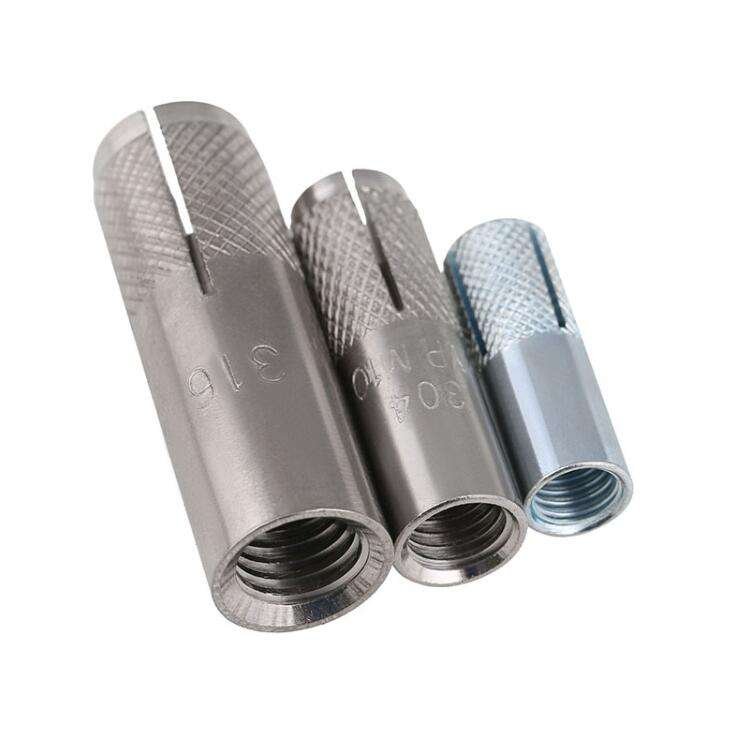

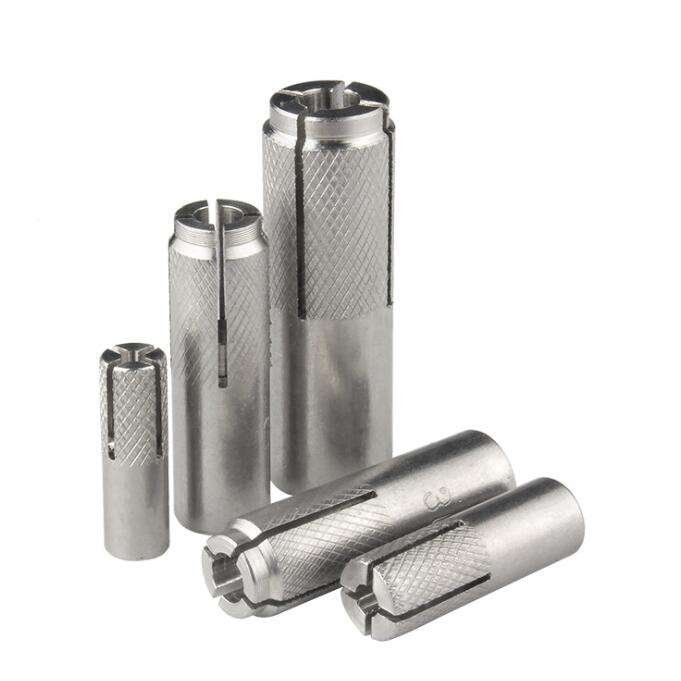

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

Perfect expansion and specially designed built-in plug ensures full expansion of anchor.

The test values listed beneath were obtained using 200-250 kgs/cm2 concrete(no aggregated).
A safe working load should not exceed 25% of stated values

Category

Drop in Anchor

Material

Carbon steel, Stainless Steel, Brass

Thread Type

Metric, American, Unified

Surface treatment

Zinc Plated, Hot Dip Glavanized, Acid cleaning

Length

40-115mm

Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling

1.Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling Description:

Perfect expansion and specially designed built-in plug ensures full expansion of anchor.

The test values listed beneath were obtained using 200-250 kgs/cm2 concrete(no aggregated).
A safe working load should not exceed 25% of stated values.

Other Used Names
Drop-in, dropin, female anchors, drop-in anchors, concrete drop in anchors, thunderdrop, multi-set concrete anchors.

1 782893

2.Carbon Steel Bluewhite Zinc Plated Drop in Anchor with Knurling Description

Category Drop in anchor
Material Carbon steel, Stainless Steel, Brass
Thread Type Metric, American, Unified
Surface treatment Zinc Plated, Hot Dip Glavanized, Acid cleaning
Appearance With Knurling, With Lip, Without Knurling

3.Paremeters:

Carbon Steel & Stainless Steel

Thread Size(A) Anchor Dia.(B)
Thread Depth
(D)
Anchor Length (C) Pull out Load (Kgs) Qty.Per Box/Ctn
Weight Kgs/
1000pcs
1/4-20 3/8″ 1/2″ 1″ 1000 100/2000 11.0
3/8-16 1/2″ 5/8″ 1-9/16″ 2000 50/1000 28.0
1/2-13 5/8″ 3/4″ 2″ 3200 50/500 54.0
5/8-11 7/8″ 7/8″ 2-1/2″ 5400 25/200 141.0
3/4-10 1″ 1-1/4″ 3-1/8″ 7000 25/150 227.0
M6 (W1/4) 8.0 10 25 950 100/2000 6.3
M8 (W5/16) 10.0 14 30 1350 100/2000 12.5
M10 (W3/8) 12.0 15 40 1950 50/1000 25.0
M12 (W1/2) 16.0 20 50 2900 50/500 51.0
M16 (W5/8) 20.0 25 65 4850 25/200 112.0
M20 (W3/4) 25.0 35 80 5900 25/150 235.0

4.Brass:

Drop in Anchor Size Qty.Per Box/Ctn Weight Kgs/1000pcs
M6XØ8X25 100/4000 6.5
M8XØ10X30 100/2000 12
M10XØ12X40 50/1000 23
M12XØ16X50 25/500 51
M16XØ20X65 25/200 106
M20XØ25X80 25/100 210

If the product is non standard and need customized, please contact us for more details.
